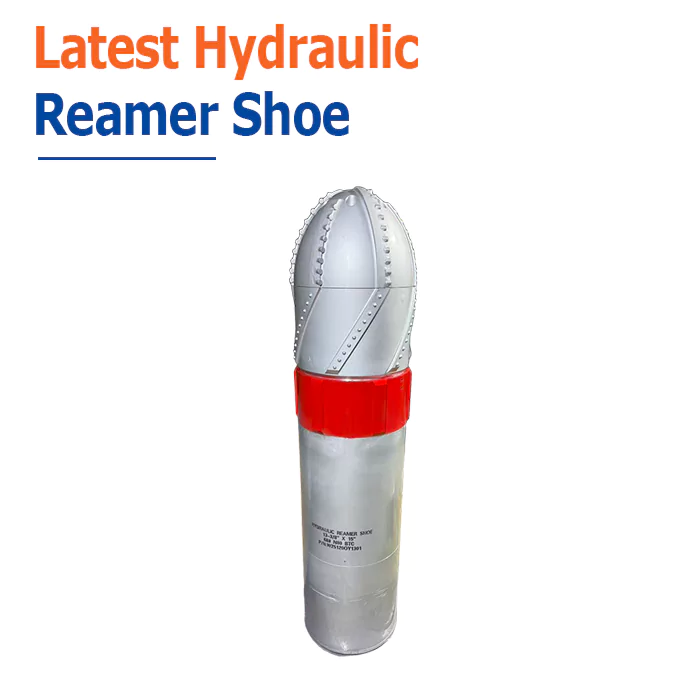

Latest Hydraulic Reamer Shoe

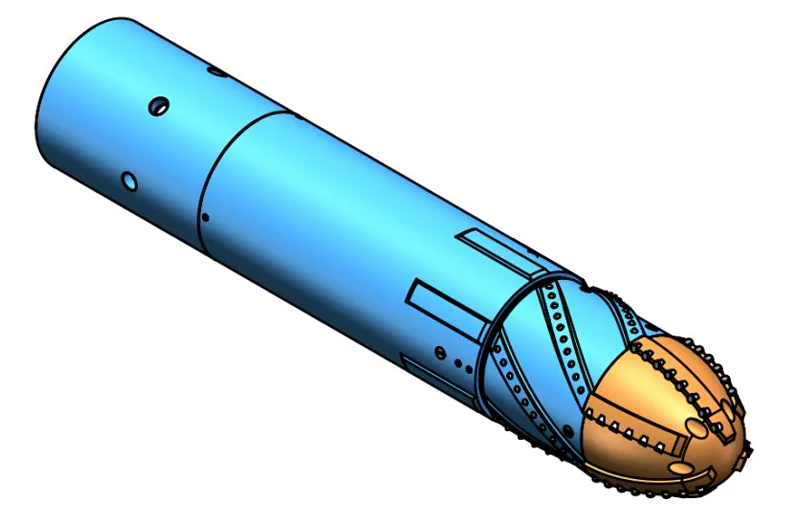

Hydraulic reamer shoe is the latest new tech of reamer shoe. It typically uses the force of the fluid to create a jetting action. This high-pressure fluid stream is directed at the bottom of the wellbore to break up rock and clean the hole. It uses high-velocity fluid jets rather than the mechanical rotation of blades. Some designs may have fixed blades that are activated by a hydraulic system, but the core principle is fluid pressure.
what is a hydraulic reamer shoe?
A hydraulic reamer shoe uses high-pressure fluid jets from the rig’s pumps to ream, drill, and clean the wellbore. While some may have fixed blades for additional scraping, their primary mechanism is the hydraulic erosion of obstructions and the wellbore walls.
why the hydraulic reamer shoe is better?
Compare with the traditional reamer shoe, the latest hydraulic reamer shoe has below advantages:
- Ideal for Challenging Wells: This tool is excellent for horizontal and extended-reach wells where rotating the casing is not feasible. The hydraulic action cleans the hole without requiring pipe rotation.
- Powerful Cleaning Action: The high-velocity fluid jets are highly effective at clearing mud cake, soft debris, and other obstructions from the wellbore.
- Reduces Torque and Drag: Since it doesn’t rely on casing rotation, it helps minimize the torque and drag on the casing string, reducing the risk of casing damage.
- Provides turbine-powered reaming
- PDC cutters on the nose provide high-efficiency reaming
- Internal locking prevents rotation for easier PDC drilling.
- Reduces or eliminates wiper trips.
- Lowers circulation pressures while reaming.
- Enables stress-free casing connections.
- Allows faster passage through problematic well sections
- Reduces well construction risks.
- Eliminates the need for string rotation.
- Provides a low flowrate on startup.

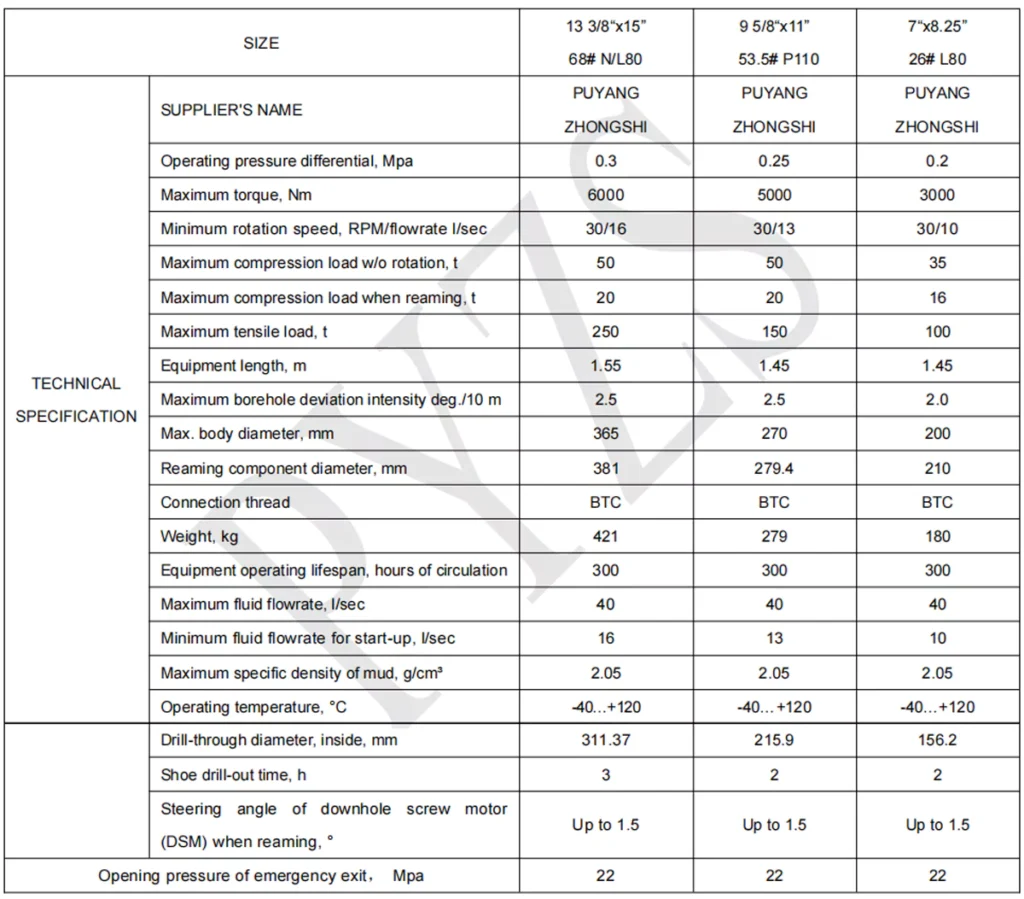

data sheet of hydraulic reamer shoe
Get Quotation
Latest Hydraulic Reamer Shoe
why choose puyang zhongshi co ltd?
Premier Authority and Most Capable Supplier in Oilfield
Established in 1996 through the SINOPEC Central Plains Oilfield restructure, Puyang Zhongshi Group Co Ltd operates with a registered capital of 130 million RMB and an annual output of 200 million RMB. We employ over 580 staff, including 160+ technical experts.
Our main product is Oil Machinery, supported by over 10 specialized companies (including cementing tools, pumping units, and wellhead systems) and five international trade departments. For cementing tools, we have a robust monthly capacity of 500 sets of float equipment and 30,000 centralizers.
We have built long-term strategic partnerships across major global markets, including USA, Russia, Kazakhstan, Sudan, Indonesia, Iran, and Venezuela.
fully certified by API & ISO
The API (American Petroleum Institute) certifications our company Puyang Zhongshi Group holds are excellent and position us very strongly in the global oil and gas market. They provide an authoritative, third-party validation of our product quality and system reliability.
Having the API Q1 certification immediately places our company Puyang zhongshi group co ltd in the top tier of suppliers. Many smaller manufacturers only hold ISO 9001, but the Q1 certification signals a commitment to the oil and gas industry’s most demanding quality requirements, especially relevant for services and complex equipment.
Supplier of the SLB, Halliburton & Baker Hughes
We are the stable supplier of the International Big Three—Schlumberger, Halliburton, and Baker Hughes. Our established partnership with these global leaders means our products and services are proven to meet the industry’s most rigorous standards. Our clients include many top oil service companies in the world.
