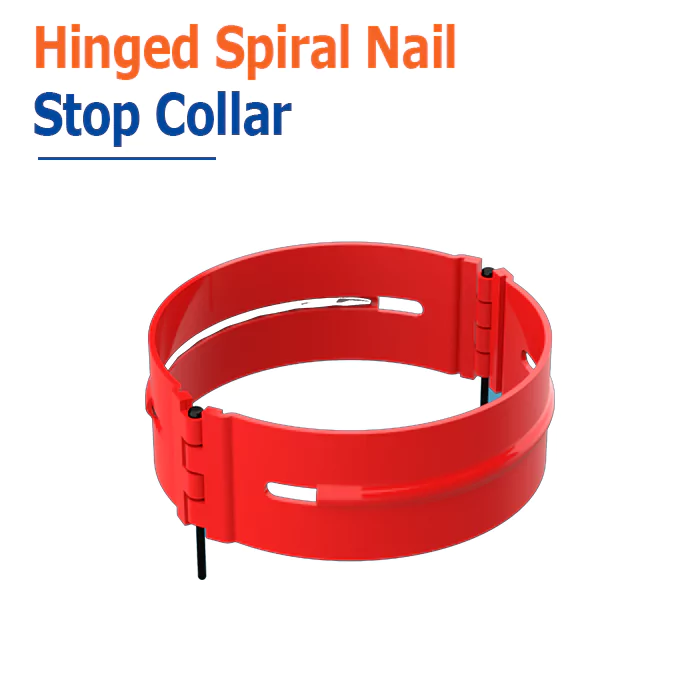

What is a Hinged Spiral Nail Stop Collar?
The Hinged Spiral Nail Stop Collar (also called a Hinged Drive Pin Stop Collar), is a common cementing tool using for fixation of the centralizers. It can be latched onto the casing pipe at any position, enabling fast, mid-joint installation. The collar is secured by driving one or more specially designed spiral nails into pre-drilled holes in the collar once it is wrapped around the casing. The force of the hammer drive action causes the pin to deform or lock within the collar and bite into the casing surface, creating a firm mechanical wedge and lock.
Key advantages of Hinged Spiral Nail Stop Collar
The primary advantages of this type are all related to speed, simplicity, and reliability in the field:
- Fastest Installation Time: This is the chief advantage. The “hammer-and-lock” method is significantly faster than tightening multiple set screws with a wrench or torquing bolts, leading to reduced rig time during casing running operations.
- Excellent Holding Force: The hardened drive pins wedge the collar tightly against the casing, providing a strong, reliable, positive mechanical lock that meets or exceeds API specifications for holding force.
- No Specialized Tools Required: Installation typically requires only a hammer, eliminating the need for specific torque wrenches, Allen keys, or socket sets, which simplifies rig floor operations and tool accountability.
- Positive Visual Confirmation: When the pin is fully seated, the operator has a clear visual confirmation that the collar is secured.
Hinged Spiral Nail Stop Collar is suitable for
- Medium to High-Deviation Wells: The strong mechanical lock makes it suitable for resisting high axial drag forces, ensuring centralizers remain in position.
- Rapid Casing Running Operations: Highly favored in environments where the focus is on maximizing the rate of penetration (ROP) of the casing string due to its minimal installation time.
- Standard Casing Grades: As the pin bites into the casing surface, it is best suited for standard carbon steel casing where minor surface penetration is acceptable.
- Standard Centralization: It is an excellent, reliable option for securing all common types of centralizers (bow-spring and solid-body) and cement baskets.
