What is a Hinged Set Screw Stop Collar?

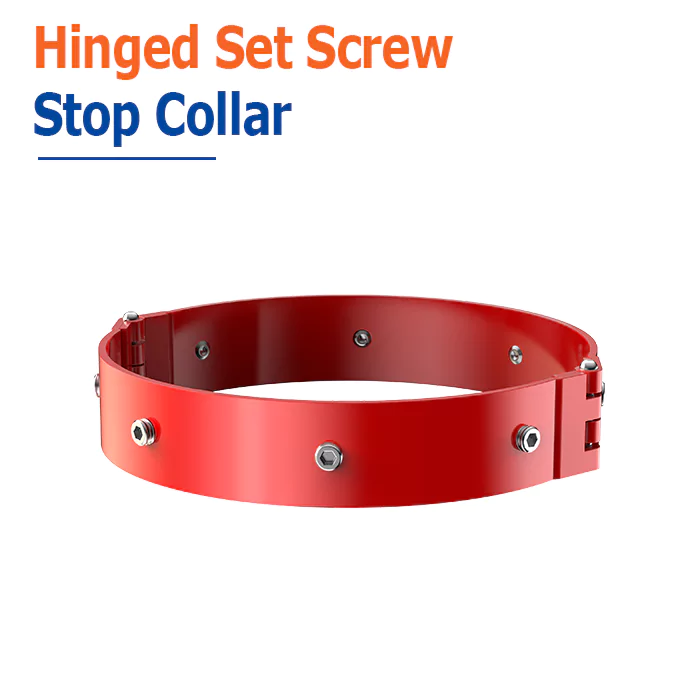

A Hinged Set Screw Stop Collar is a metallic ring composed of two halves joined by a hinge.
The two-piece, hinged design allows the collar to be opened and latched onto the casing pipe at any point along its length. This means installation is quick and does not require slipping the collar over the end of the casing joint. Once the collar is latched around the casing, it is secured by tightening one or more set screws (typically using an Allen wrench). The sharpened tip of the set screw penetrates the pipe’s outer surface, creating a positive mechanical lock or “bite” into the casing material.
Key advantages of Hinged Set Screw Stop Collar
High Positive Holding Force: The set screw mechanism provides a direct, high-strength mechanical lock. By biting into the casing surface, it generates a superior axial holding force compared to friction-only collars (like pure Slip-On types), making it highly reliable under high axial loads.
Quick and Flexible Installation: The latch-on (hinged) design is highly efficient on the rig floor. It allows the operator to install the collar anywhere on the casing (including mid-joint, between centralizers, or over minor imperfections) without having to manipulate the collar over the entire length of the pipe.
Cost-Effectiveness: It is generally a cost-effective choice that provides a high level of performance suitable for most standard drilling applications.
Hinged Set Screw Stop Collar is suitable for
Deviated and Horizontal Wells: The high holding force is essential for resisting the significant drag and running forces encountered when running heavy casing strings in non-vertical well sections.
Standard Casing Grades: Ideal for use with carbon steel casing where the minor surface damage (scoring) caused by the set screws is not a critical metallurgical concern regarding corrosion or structural failure.
Rapid Installation Scenarios: Any situation where minimizing rig time is a priority, as the hinged design makes placement very fast compared to slip-on types.
Securing Most Accessories: It is the standard choice for securing all types of casing centralizers (bow-spring and solid-body) and cement baskets.
