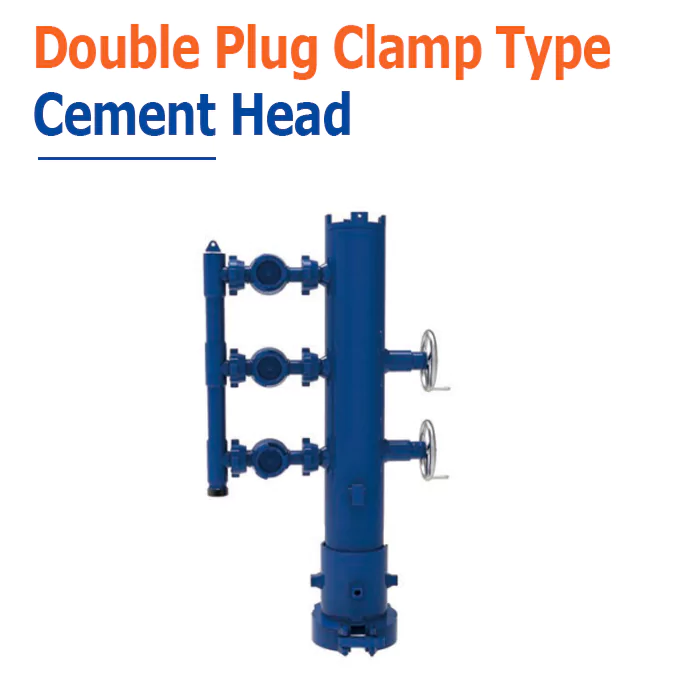

Double Plug Clamp-Type Cementing Head
A Double Plug Clamp-Type Cementing Head is an important cementing tool that holds and releases two cementing plugs, connects to the casing quickly and securely using a clamp, and controls the flow and pressure during the entire cementing operation. Puyang Zhongshi Group Co Ltd is the golden supplier for different types of cementing heads. We exporting to over 40 countries. We are your reliable partner in oilfeild tools!
what is a Double-Plug Clamp Type Cementing Head?
A Double Plug Clamp-Type Cementing Head is a specific piece of surface equipment used in oil and gas drilling for conducting cementing operations. It is capable of holding and sequentially releasing two cementing plugs: the Bottom cement Plug and the Top cement Plug. The clamp mechanism allows the head to be quickly and easily secured to the casing without having to perfectly align and make up threads.
advantages of Double-Plug Clamp Type Cementing Head
- Capable of accommodating two-stage cementing operations, equipped with an independent plug valve manifold for circulation.
- The full range of specifications complies with the SY/T 7084-2016 standard requirements.
- The quick-install connector design expands the connection range, allowing for more convenient and reliable adaptation to casing of the same size but with different thread types.
- Equipped with a cementing plug drop indicator, facilitating observation during the operation.
data sheet of Double-Plug Clamp Type Cementing Head
| Size (mm) / (in) |
Pipe ID (mm) |
Length (mm) |
Working Pressure (Mpa) |
Top Plug Length Capacity (mm) |
Bottom Plug Length Capacity (mm) |
Manifold Union |
Part No. |
|---|---|---|---|---|---|---|---|
| 127 5 |
127 | 1620~1687 | 70 | 300 | 300 | 2" 1502 | DPCHQL12721502001 |
| 140 5-1/2 |
140 | 1620~1687 | 70 | 300 | 300 | 2" 1502 | DPCHQL14021502001 |
| 178 7 |
178 | 2010~2080 | 50 | 425 | 425 | 2" 1502 | DPCHQL17821502001 |
| 219 8-5/8 |
219 | 2010~2080 | 50 | 425 | 425 | 2" 1502 | DPCHQL21921502001 |
| 244 9-5/8 |
245 | 2010~2080 | 50 | 425 | 425 | 2" 1502 | DPCHQL24421502001 |
| 273 10-3/4 |
273 | 2010~2074 | 50 | 425 | 425 | 2" 1502 | DPCHQL27321502001 |
| 340 13-3/8 |
340 | 2010~2074 | 35 | 425 | 425 | 2" 1502 | DPCHQL34021502001 |
| 406 16 |
406 | 2210~2251 | 35 | 520 | 525 | 2" 1502 | DPCHQL40621502001 |
| 473 18-5/8 |
473 | 2210~2251 | 35 | 520 | 525 | 2" 1502 | DPCHQL47321502001 |
| 508 20 |
508 | 2210~2251 | 35 | 520 | 525 | 2" 1502 | DPCHQL50821502001 |
Get Quotation
Double Plug Clamp-Type Cementing Head
